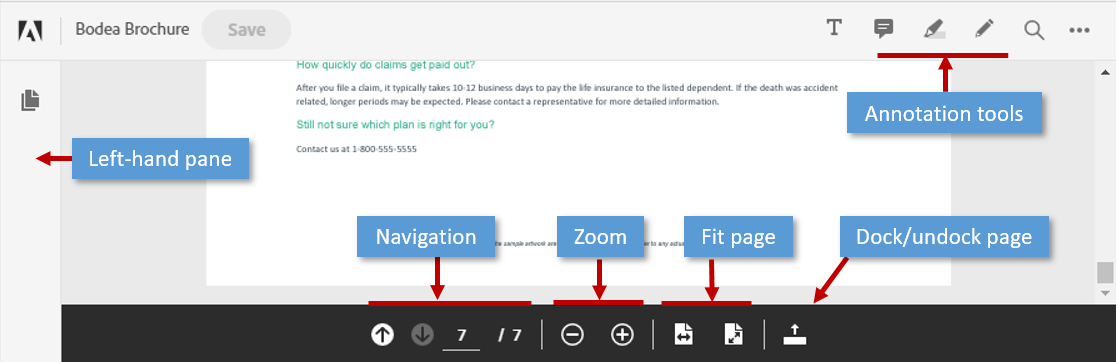

UI customization¶

Save callback¶

This callback allows users to save the updated PDF buffer which can then be stored in an external file storage system.

• If you do not register a callback, when a user triggers the save functionality, the app downloads the updated PDF to the user’s local machine. The default location is often the Downloads folder.

• If you do register a callback, then your code can enable saving the modified document to an external file storage system like OneDrive or Google Drive. In this case, the code varies with the website developer’s implementation.

Users can trigger the save functionality by either clicking on the Save button manually or by pressing Ctrl+S on the keyboard. You should register the callback to receive the modified file content when the user initiates the save.

To control the save callback behavior, you can pass the following options:

• autoSaveFrequency: Optional. Default value is 0. The save callback supports auto-saving so that manual saving is not required. The value is the time in seconds after which the PDF is auto-saved if there are any unsaved changes and no other annotation changes are made in the meantime. Using this configuration, the document is saved even if the user does not manually save. You must set this parameter to a numeric value greater than 0.

• enableFocusPolling: Optional. Default value is false. When true, a PDF with unsaved changes is auto-saved whenever the user focus shifts from the current PDF preview (for example, by opening a new tab in the same browser). When false, auto-save does not happen. Set this parameter to true if you want this to work.

• showSaveButton: Optional. Default value is true. Set this to false if you don’t want the save button to be displayed at all, not even when the PDF is modified. When set to false, the save button is never displayed and save operation will be done through auto-save or through the keyboard by pressing Ctrl+S.

The second callback parameter is a Javascript function returning a Promise which either resolves or fails with a response object containing code and data. The function parameters include:

• metaData: Information about the file

• content: The ArrayBuffer of file content

• options: (optional) Additional user options passed to the function to control its behavior in certain cases. For instance, the saveAs option is passed here when the current user saves a copy of a changed PDF when multiple users are modifying the same file (See the FILE_MODIFIED case below).

Save callback signature

const saveOptions = {
   autoSaveFrequency: <Number, default=0>,
   enableFocusPolling: <Boolean, default=false>,
   showSaveButton: <Boolean, default=true>
}

adobeDCView.registerCallback(
   AdobeDC.View.Enum.CallbackType.SAVE_API,
   function(metaData, content, options) {
      /* Add your custom save implementation here...and based on that resolve or reject response in given format */
      return new Promise((resolve, reject) => {
         resolve({
            code: AdobeDC.View.Enum.ApiResponseCode.SUCCESS,
            data: {
               /* Updated file metadata after successful save operation */
               metaData: <File MetaData>
            }
         });
      });
   },
   saveOptions
);

The website developer can write their own save implementation in this function and should send the response object with the appropriate code and data in the following format:

• SUCCESS: Use this response code to denote a successful save operation where the response data contains the updated file metadata.

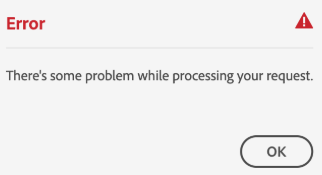

• FAIL: Use the FAIL response code when the save API fails. Response data is optional in this case. The user will see an error popup and should retry saving.

• FILE_MODIFIED

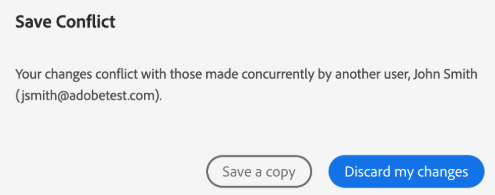

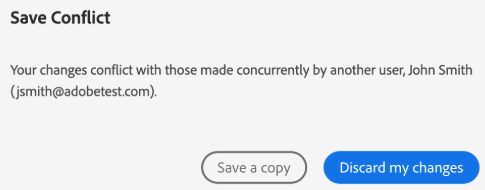

Use the response code FILE_MODIFIED to capture the case when two users simultaneously modify a single PDF. This case only occurs for shared files. The save functionality will fail for the current user if the file content has been previously modified by another user. The response data will contain the name and email of the other user modifying the same file.

In this scenario, the current user sees a popup with two options:

• Save a copy: Choosing the Save a copy button initiates the save callback again and saves a copy of the PDF with the current user’s changes. The {saveAs: true} option is passed to the options parameter of the function to denote that a new PDF is saved.

• Discard my changes: Discards the current user’s changes and reloads the PDF.

Save callback

/* Options to control save behavior */
const saveOptions = {
   autoSaveFrequency: <Number, default=0>,
   enableFocusPolling: <Boolean, default=false>,
   showSaveButton: <Boolean, default=true>
}

/* Register save callback */
adobeDCView.registerCallback(
   AdobeDC.View.Enum.CallbackType.SAVE_API,
   function(metaData, content, options) {
      /* Write down your own save implementation here... and based on that resolve or reject response in given format */
      /* Save callback success case */
      return new Promise((resolve, reject) => {
         resolve({
            code: AdobeDC.View.Enum.ApiResponseCode.SUCCESS,
            data: {
              metaData: Object.assign(metaData, {fileName: <UPDATED_FILE_NAME>})
            }
         });
      });

     /* Save callback failure case */
     /* return new Promise((resolve, reject) => {
           reject({
              code: AdobeDC.View.Enum.ApiResponseCode.FAIL,
              data: {
                 <Optional>
              }
           });
        }); */

     /* Save callback file modified case */
     /* return new Promise((resolve, reject) => {
           resolve({
              code: AdobeDC.View.Enum.ApiResponseCode.FILE_MODIFIED,
              data: {
                 modifiedBy: {
                   name: <Username of the user who modified the file>,
                   mail: <Email of the user who modified the file>,
                 }
              }
           });
        }); */
   },
   saveOptions);

Unsupported form fields¶

In the current version, following form fields are unsupported:

• XFA forms

• Digital Signature fields.

• Barcode fields.

• File picker text field

• RTF (rich text) text field

• Fields containing JavaScript or any kind of calculation and validation

• Text field and drop downs with some special and custom formats

• PDF Actions that includes button Submit scenarios (only button viewing is supported)

When the API detects unsuppported form fields, a dialog appears on the rendered PDF:

GetAPIs Interface¶

The getAPIs interface allows you to invoke any of the viewer APIs as follows:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

     <html>
     <head>
      <title>Adobe Document Services PDF Embed API Sample</title>
      <meta charset="utf-8"/>
      <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1"/>
      <meta id="viewport" name="viewport" content="width=device-width, initial-scale=1"/>
     </head>
     <body style="margin: 0px">
      <div id="adobe-dc-view"></div>
      <script src="https://documentcloud.adobe.com/view-sdk/main.js"></script>
      <script type="text/javascript">
             document.addEventListener("adobe_dc_view_sdk.ready", function()
             {
                     var adobeDCView = new AdobeDC.View({clientId: "<YOUR_CLIENT_ID>", divId: "adobe-dc-view"});
                     var previewFilePromise = adobeDCView.previewFile({
                      content:   {location: {url: "https://documentcloud.adobe.com/view-sdk-demo/PDFs/Bodea Brochure.pdf"}},
                        metaData:  {fileName: "Bodea Brochure.pdf"}
              });

              previewFilePromise.then(adobeViewer => {
              adobeViewer.getAPIs().then(apis => {
                       // All viewer APIs can be invoked here
               });
             });
       });
      </script>
     </body>
     </html>

Zoom APIs¶

These APIs can be used to perform zoom operations on the PDF programmatically. These APIs are supported in all embed modes except in-line embed mode.

getZoomLimits¶

This API returns the minimum and maximum allowed zoom levels of the PDF.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getZoomAPIs().getZoomLimits()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

zoomIn¶

This API zooms in on the PDF and magnifies the PDF view to the next zoom level. The magnified zoom level will never exceed the maximum zoom level of the PDF.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getZoomAPIs().zoomIn()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

zoomOut¶

This API zooms out of the PDF and reduces the PDF view to the previous zoom level. The reduced zoom level will never be less than the minimum zoom level of the PDF.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getZoomAPIs().zoomOut()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

setZoomLevel¶

This API accepts a float value as input and sets the zoom level of the PDF to that value. The input must lie between the minimum and maximum allowed zoom levels of the PDF.

If the input passed is less than the minimum zoom level, then the minimum zoom level is applied to the PDF. Similarly, if the input passed is greater than the maximum zoom level, then the maximum zoom level is applied.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getZoomAPIs().setZoomLevel(<Float>)
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

Search APIs¶

This API can be used to search for a term in the PDF programmatically. This API is supported in all embed modes.

In order to enable search APIs, the configuration variable enableSearchAPIs should be set to true and passed as a preview configuration to the previewFile API.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

     <html>
     <head>
      <title>Adobe Document Services PDF Embed API Sample</title>
      <meta charset="utf-8"/>
      <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1"/>
      <meta id="viewport" name="viewport" content="width=device-width, initial-scale=1"/>
     </head>
     <body style="margin: 0px">
      <div id="adobe-dc-view"></div>
      <script src="https://documentcloud.adobe.com/view-sdk/main.js"></script>
      <script type="text/javascript">
             document.addEventListener("adobe_dc_view_sdk.ready", function()
             {
                     var adobeDCView = new AdobeDC.View({clientId: "<YOUR_CLIENT_ID>", divId: "adobe-dc-view"});
                     var previewFilePromise = adobeDCView.previewFile({
                        content:   {location: {url: "https://documentcloud.adobe.com/view-sdk-demo/PDFs/Bodea Brochure.pdf"}},
                        metaData:  {fileName: "Bodea Brochure.pdf"}
                }, { enableSearchAPIs: true });

                previewFilePromise.then(adobeViewer => {
                   adobeViewer.getAPIs().then(apis => {
                           // All viewer APIs can be invoked here
                   });
                });
       });
      </script>
     </body>
     </html>

The search API takes a search term of String value as input and searches for that term in the entire document. The first occurrence of the search term is highlighted in the PDF, starting from the current page in view.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.search(<SEARCH_STRING>)
                        .then(searchObject => console.log(searchObject))
                        .catch(error => console.log(error));
        });
});

onResultsUpdate¶

Users can register a callback function and pass as an input to the onResultsUpdate() function. This callback function will be triggered every time a search operation takes place through the search API and the search result is highlighted in the PDF. The callback function will receive important information about the current search result in the form of a JSON. The JSON will include information such as, current page number, current search result index, total number of search results and status.

{
        currentResult: {
                pageNumber: <INTEGER>,  // Current page number in view
                index: <INTEGER>,       // Index of the current highlighted search result
        },
        totalResults: <INTEGER>,   // Total number of search results found till the time callback function is executed
        status: <STRING>           // Status of search result till the time callback function is executed. Values can be "IN_PROGRESS" or "COMPLETED".
}

function callbackFunction(searchResult) {
        console.log("Current search result: ", searchResult);
}

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.search(<SEARCH_STRING>).then(searchObject => {
                        searchObject.onResultsUpdate(callbackFunction)
                                .then(result => console.log(result))
                                .catch(error => console.log(error));
                })
                .catch(error => console.log(error));
        });
});

next¶

This function will highlight and navigate to the next search result in the PDF.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.search(<SEARCH_STRING>).then(searchObject => {
                        searchObject.next()
                                .then(result => console.log(result))
                                .catch(error => console.log(error));
                })
                .catch(error => console.log(error));
        });
});

previous¶

This function will highlight and navigate to the previous search result in the PDF.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.search(<SEARCH_STRING>).then(searchObject => {
                        searchObject.previous()
                                .then(result => console.log(result))
                                .catch(error => console.log(error));
                })
                .catch(error => console.log(error));
        });
});

clear¶

This function will cancel the ongoing search operation and clear the search results.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.search(<SEARCH_STRING>).then(searchObject => {
                        searchObject.clear()
                                .then(result => console.log(result))
                                .catch(error => console.log(error));
                })
                .catch(error => console.log(error));
        });
});

Bookmark APIs¶

These APIs programmatically access existing PDF bookmarks. Note that only the Full Window embed mode supports these APIs.

getBookmarks¶

This API returns the list of existing PDF bookmarks Each bookmark item in this list is represented as a JSON containing important information such as, ID, title and the list of nested bookmarks residing under this bookmark.

{
        id: <NUMBER>      // Unique identifier of the bookmark
        title: <STRING>,  // Title of the bookmark
        children: [ CHILD_BOOKMARK_1, CHILD_BOOKMARK_2, ... ]     // List of nested bookmarks which exists under this bookmark
}

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getBookmarkAPIs().getBookmarks()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

openBookmark¶

This API accepts a bookmark ID as input and navigates to that particular PDF bookmark.

const bookmark_ID = <BOOKMARK_ID>;

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getBookmarkAPIs().openBookmark(bookmark_ID)
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

getPDFMetadata¶

This API returns basic information about the PDF fetched from the PDF dictionary; for example, the PDF’s number of pages and title.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getPDFMetadata()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

getXMPMetadata¶

XMP (Extensible Metadata Platform) is a technology developed by Adobe which provides a common XML framework to store metadata in digital documents. XMP Metadata includes information about the document and its contents, such as the author’s name, keywords, and copyright information.

getXMPMetadata checks the PDF for XMP metadata and returns it if present. The API accepts two optional input parameters.

• The first optional input parameter takes a list of XMP metadata fields. The API returns the values of only these fields. If no field is passed, then it returns the default field values.

• The second optional input parameter takes a boolean value. If true, the API will also return the complete XMP metadata stream. The default value is false.

const fields = ["dc:title", "dc:creator", "xmp:CreateDate"];
const includeRawStream = true;
previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getXMPMetadata(fields, includeRawStream)
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

getSelectedContent¶

If a user selects any content in the viewer, then the selected content can be fetched using this API. This API currently only works with text selection.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getSelectedContent()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
        });
});

setCursor¶

This API sets the page cursor to any cursor style, such as help, wait, crosshair, etc.

const cursor_type = <Cursor_Type>;
previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.setCursor(cursor_type)
  .then(()  =>  console.log("Success"))
  .catch(error  =>  console.log(error));
         });
});

resetCursor¶

This API revokes an applied cursor style and reverts it to the default cursor style.

previewFilePromise.then(adobeViewer => {

        adobeViewer.getAPIs().then(apis => {
                apis.resetCursor();
         });
});

getCurrentPage¶

This API returns the current page number of the in focus page.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getCurrentPage()
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
         });
});

getPageZoom¶

This API takes the PDF page number as input and returns the zoom level of that page.

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.getPageZoom(<Page_Number>)
                        .then(result => console.log(result))
                        .catch(error => console.log(error));
         });
});

gotoLocation¶

This API enables navigation to any PDF page. It accepts a page number as input. You can also pass the x and y coordinates on the page as optional input parameters to enable navigation to a particular location on the page. When no coordinates are passed, the default coordinates are (0, 0).

previewFilePromise.then(adobeViewer => {

        adobeViewer.getAPIs().then(apis => {
                apis.gotoLocation(<Page_Number>, <X_Coordinate>, <Y_Coordinate>)
                        .then(() => console.log("Success"))
                        .catch(error => console.log(error));
         });
});

clearPageSelection¶

This API accepts a page number as input and clears any text selection applied to the page.

previewFilePromise.then(adobeViewer => {

adobeViewer.getAPIs().then(apis => {
                apis.clearPageSelection(pageNumber)
                        .then(() => console.log("Success"))
                        .catch(error => console.log(error));
         });
});

enableTextSelection¶

This API controls text selection in PDF. The default is enabled (true). Note that disabling text selection also disables the highlight option in the top toolbar.

const allowTextSelection = false;

previewFilePromise.then(adobeViewer => {
        adobeViewer.getAPIs().then(apis => {
                apis.enableTextSelection(allowTextSelection)
                        .then(() => console.log("Success"))
                        .catch(error => console.log(error));
         });
});
