PDF Embed API basics¶

File URL¶

Passing PDF data via a URL is self-explanatory, but note that some scenarios require special handling.

Token-based authentication

When a file URL resides behind token-based authentication and use custom headers, pass both the URL and the headers as follows:

     adobeDCView.previewFile({
        content: {
            location: {
               url: <filepath>,
               headers:[{key: ..., value: ...}, ...]
            },
        },
        metaData: {fileName: <filename> }
     })

Cookie-based authentication

When a file URL uses cookie-based authentication, set downloadWithCredentials to true when initialising the AdobeDC.View object:

     var adobeDCView = new AdobeDC.View({
         ...
         downloadWithCredentials: true,
     });

Cross-origin resource sharing¶

Cross-origin resource sharing (CORS) issues may occur when you pass PDF content as a URL and the PDF Embed API needs to download the file from the provided location in order to render it. To avoid this situation, you can choose one of two methods:

• Locate your webpage and file location URL on the same domain. Example: webpage: https://example.com/viewer/test.html; PDF location: https://example.com/resources/abc.pdf)

• Enable CORS headers on the PDF resource to allow access from your webpage domain.

File promise¶

If the file content is available as an ArrayBuffer (for example, local PDF files), then it can be passed directly as a Promise which should resolve to the ArrayBuffer of the file content.

adobeDCView.previewFile({
    content: { promise: <FILE_PROMISE> }
    metaData: { fileName: <FILE_NAME> }
});

One way to create a file promise is to allow users to choose a local file for upload. In your HTML, you could do the following:

<label for="file-picker"> Choose a PDF file:</label>
<input type="file" id="file-picker" accept="application/pdf">

Once the file uploads, you could use a helper function to read the file and pass it to adobeDCView.previewFile:

function listenForFileUpload() {
  var fileToRead = document.getElementById("file-picker");
  fileToRead.addEventListener("change", function(event) {
     var files = fileToRead.files;
     if (files.length > 0) {
        var reader = new FileReader();
        reader.onloadend = function(e) {
            var filePromise = Promise.resolve(e.target.result);
            // Pass the filePromise and name of the file to the previewFile API
            // adobeDCView.previewFile({
            //      content: {promise: filePromise}
            //      metaData: { fileName: files[0].name }
            // })
        };
        reader.readAsArrayBuffer(files[0]);
      }
    }, false);
}

Full window¶

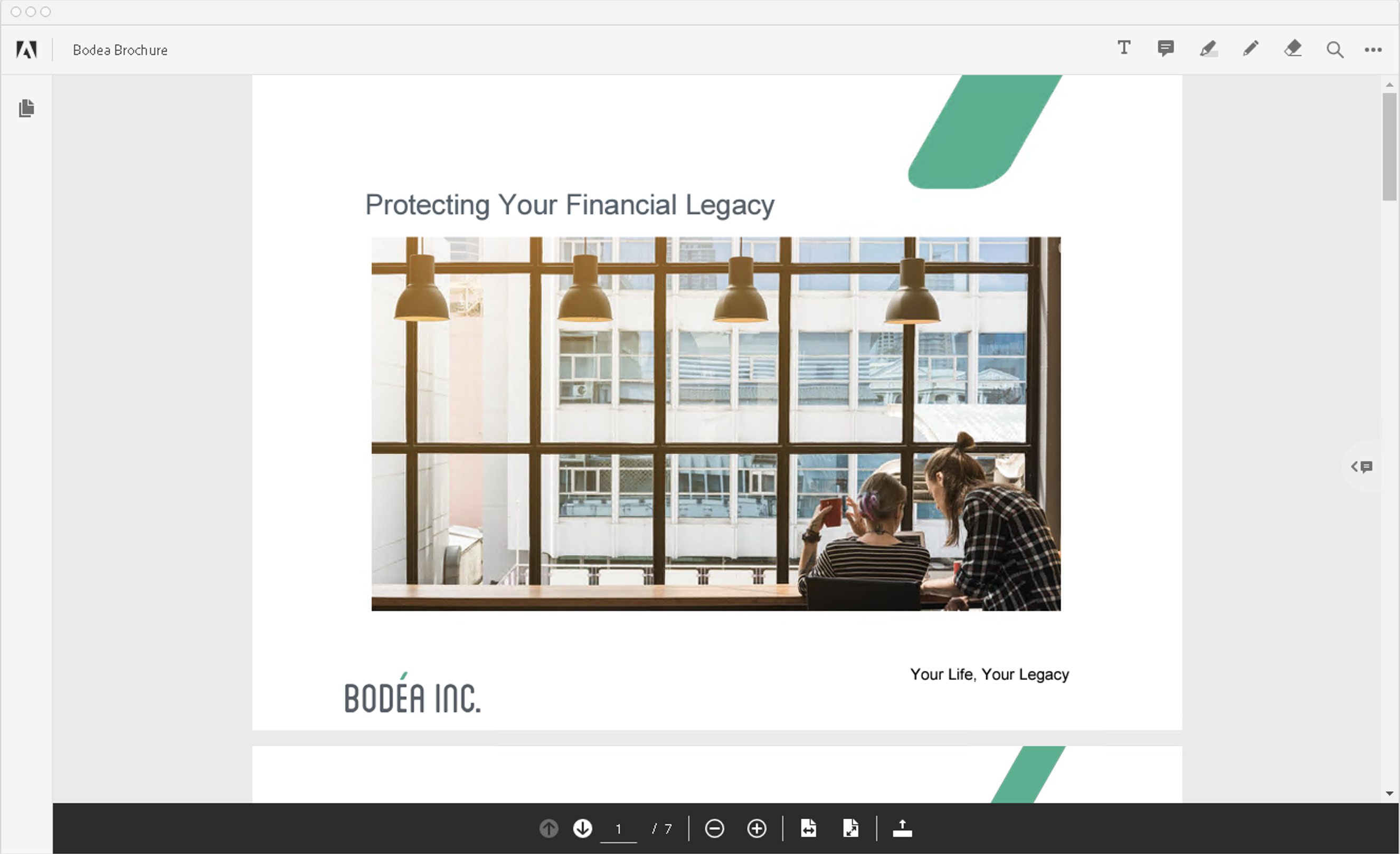

The full window mode is the default embed mode and renders the PDF in the full browser. This mode is best suited for storage and productivity applications. (View Demo)

• Commenting: By default, all commenting tools (add text comment, sticky notes, highlight, drawing tool, strikethrough and underline) along with the eraser tool are available with this mode. Users can add and save annotations to the PDF. If desired, disable commenting feature by setting the showAnnotationTools variable to false.

• Print and download: This mode supports options to download and print the PDF (showDownloadPDF and showPrintPDF) as well as view the left hand panel to toggle page thumbnails on and off (showLeftHandPanel).

• Page controls: Show or hide the page control options in the bottom toolbar, such as, zoom level, fit page, fit width, dock/undock page controls and navigation controls. (showPageControls and dockPageControls).

• View mode: Set the default page view to either fit page or fit width (defaultViewMode).

<div id="adobe-dc-view"></div>
<script src="https://documentcloud.adobe.com/view-sdk/main.js"></script>
<script type="text/javascript">
  document.addEventListener("adobe_dc_view_sdk.ready", function(){
    var adobeDCView = new AdobeDC.View({clientId: "<YOUR_CLIENT_ID>", divId: "adobe-dc-view"});
    adobeDCView.previewFile({
      content:{location: {url: "https://documentcloud.adobe.com/view-sdk-demo/PDFs/Bodea Brochure.pdf"}},
      metaData:{fileName: "Bodea Brochure.pdf"}
    }, {});
  });
</script>

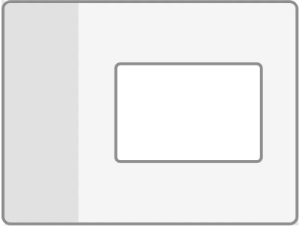

Sized container¶

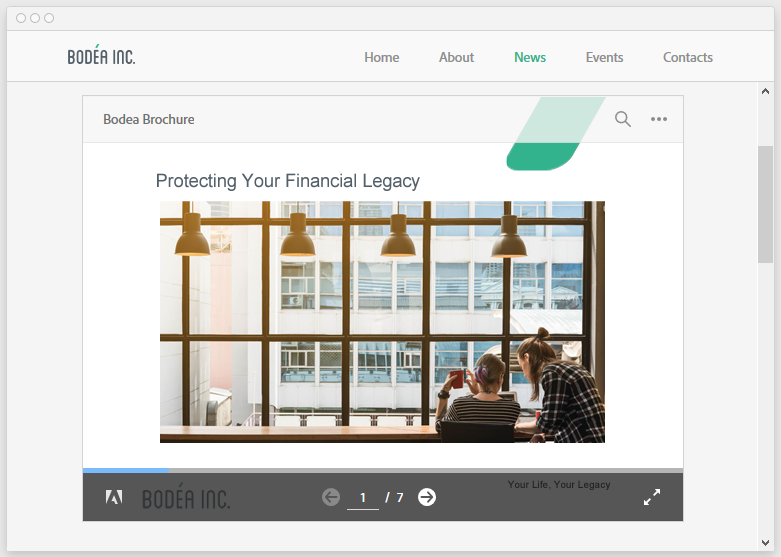

The sized container mode displays PDFs in a boxed container with landscape orientation. Each page appears as a slide, so this mode works well for presentations and other workflows that require accurate placement of the PDF content within other content. (View Demo)

To use this mode:

• Specify the embedded viewer size by passing height and width values to the enclosing div tag of the PDF viewer.

• Pass embedMode: "SIZED_CONTAINER"

• Optional: Configure the page and tool options

  • Page controls: The page control toolbar with navigation options is docked but can be undocked by setting dockPageControls to false. A full screen mode button appears in the page control toolbar (showFullScreen).

  • Print and download: This mode supports options to download and print the PDF (showDownloadPDF and showPrintPDF) as well as document search.

<div id="adobe-dc-view" style="height: 360px; width: 500px;"></div>
<script src="https://documentcloud.adobe.com/view-sdk/main.js"></script>
<script type="text/javascript">
  document.addEventListener("adobe_dc_view_sdk.ready", function(){
    var adobeDCView = new AdobeDC.View({clientId: "<YOUR_CLIENT_ID>", divId: "adobe-dc-view"});
    adobeDCView.previewFile({
      content:{location: {url: "https://documentcloud.adobe.com/view-sdk-demo/PDFs/Bodea Brochure.pdf"}},
      metaData:{fileName: "Bodea Brochure.pdf"}
    }, {embedMode: "SIZED_CONTAINER"});
  });
</script>

Toggling full screen¶

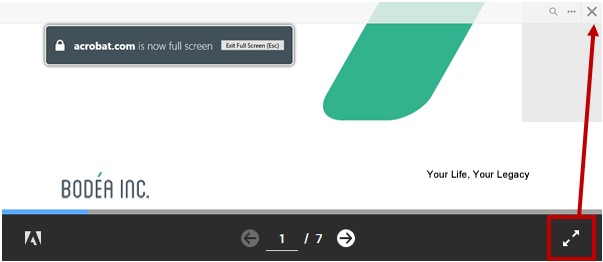

To display the PDF in full screen view, choose the full screen mode button in the page toolbar. The top bar contains a traditional exit (X) button which returns full screen mode to normal mode. In mobile browsers, you can also exit full screen mode by swiping down.

In-Line¶

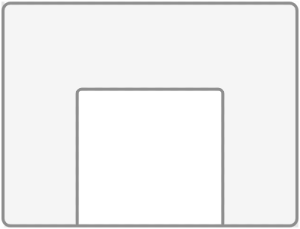

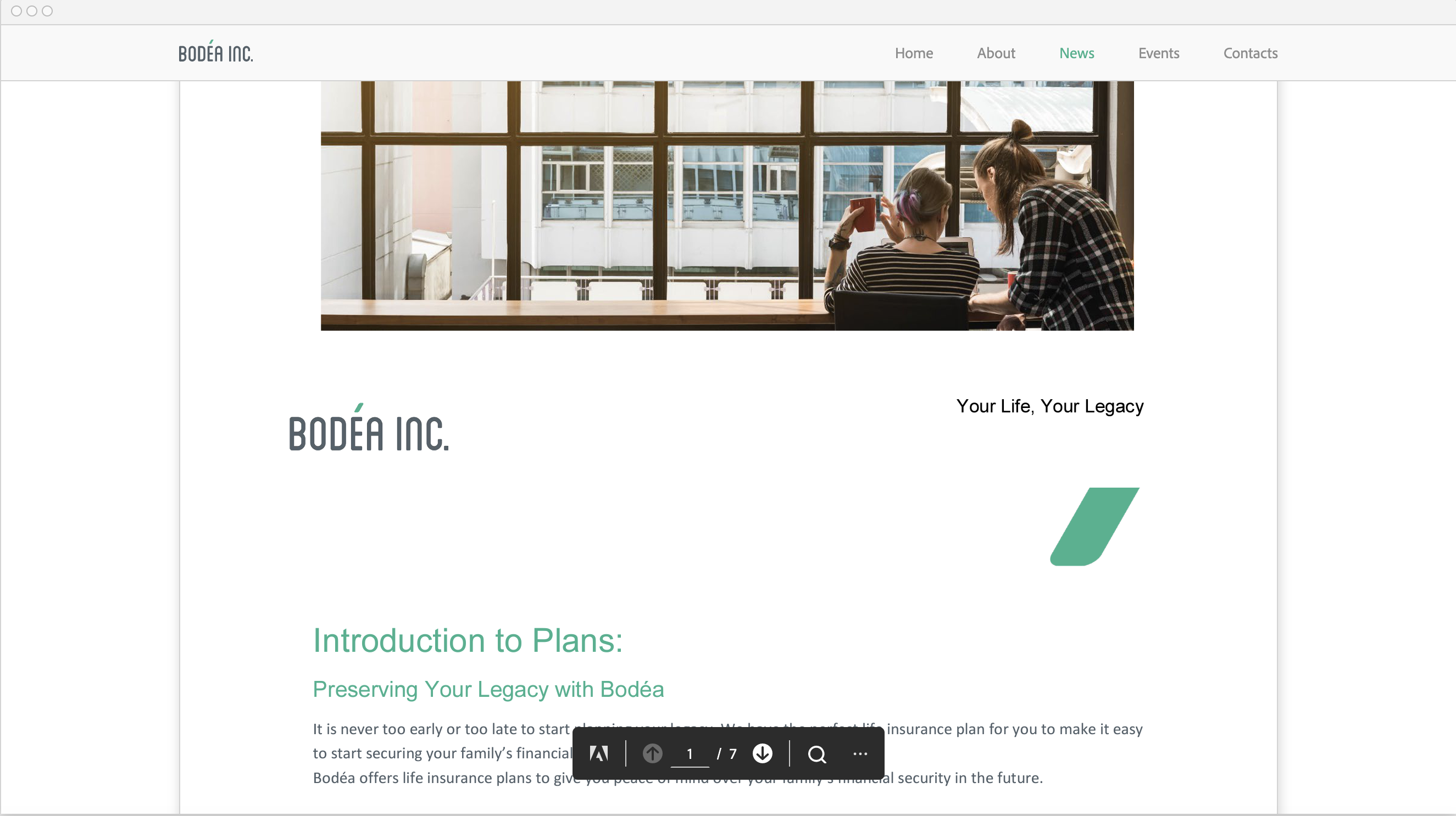

In-Line mode renders PDF pages inline with other web page content. In this mode, all PDF pages are displayed at once which enables easy and smooth navigation. In this mode you need only specify the width of the embedded viewer in the enclosing div tag since the viewer height is automatically sized for the number of PDF pages. This mode is ideal for whitepapers, brochures, e-books, and other reading applications. (View Demo)

To use this mode:

• Specify the viewer width attribute in the enclosing div tag of the PDF viewer.

• Pass embedMode: "IN_LINE"

• Optional: By default, the page control toolbar only displays when a user scrolls pages. The toolbar displays basic navigation controls and document search along with options to download and print the PDF. You can toggle both showDownloadPDF and showPrintPDF on and off.

<div id="adobe-dc-view" style="width: 800px;"></div>
<script src="https://documentcloud.adobe.com/view-sdk/main.js"></script>
<script type="text/javascript">
   document.addEventListener("adobe_dc_view_sdk.ready", function(){
     var adobeDCView = new AdobeDC.View({clientId: "<YOUR_CLIENT_ID>", divId: "adobe-dc-view"});
   adobeDCView.previewFile({
     content:{location: {url: "https://documentcloud.adobe.com/view-sdk-demo/PDFs/Bodea Brochure.pdf"}},
     metaData:{fileName: "Bodea Brochure.pdf"}
 }, {embedMode: "IN_LINE"});
 });
</script>

Lightbox¶

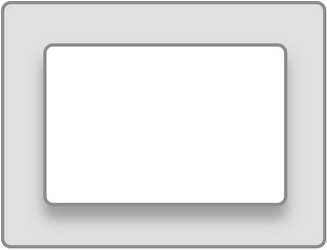

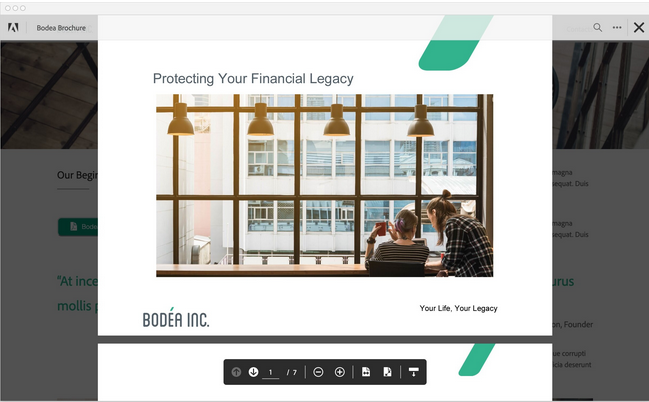

Lightbox mode renders the PDF in the foreground at top of the page. The background remains visible, but the focus is on the previewed PDF. This view mode also provides configurable Close and Back buttons in the top bar. The Close button appears by default. (View Demo)

To use this mode:

• Pass embedMode: "LIGHT_BOX".

• Optional: Configure the page, tool, and exit PDF Viewer options

  • Print and download: This mode supports options to download and print the PDF (showDownloadPDF and showPrintPDF).

  • Page controls: Show or hide the page control options in the bottom toolbar, such as zoom level, fit page, fit width, dock/undock page controls, and navigation controls (showPageControls).The page control toolbar is undocked by default but can be docked by setting dockPageControls to true.

  • View mode: Set the default page view to either fit page or fit width (defaultViewMode).

  • Exit PDF Viewer: The top bar contains the Close button by default to close the PDF preview which can be configured to Back button by setting exitPDFViewerType to RETURN (exitPDFViewerType: "RETURN").

<script src="https://documentcloud.adobe.com/view-sdk/main.js"></script>
<script type="text/javascript">
    document.addEventListener("adobe_dc_view_sdk.ready", function(){
        var adobeDCView = new AdobeDC.View({clientId: "<YOUR_CLIENT_ID>"});
        adobeDCView.previewFile({
            content:{location: {url: "https://documentcloud.adobe.com/view-sdk-demo/PDFs/Bodea Brochure.pdf"}},
            metaData:{fileName: "Bodea Brochure.pdf"}
        }, {embedMode: "LIGHT_BOX"});
    });
</script>

Top bar with Close button (default)

Top bar with Back button (exitPDFViewerType: "RETURN")
